What is a 1n4148 Diode?[A Comprehensive Guide to 1N4148 Diode]

The 1N4148 diode is one of the most widely used small-signal switching components in electronic circuit design. Known for its fast switching capability and versatile functionality, it plays an important role in applications ranging from signal processing to digital logic circuits. Whether you are exploring its working principles, understanding its electrical characteristics, or evaluating its suitability for a specific design, knowing the fundamentals of the 1N4148 can help you make informed component choices. In this article, we will explore what type of diode is 1n4148, key specifications and other essential details.

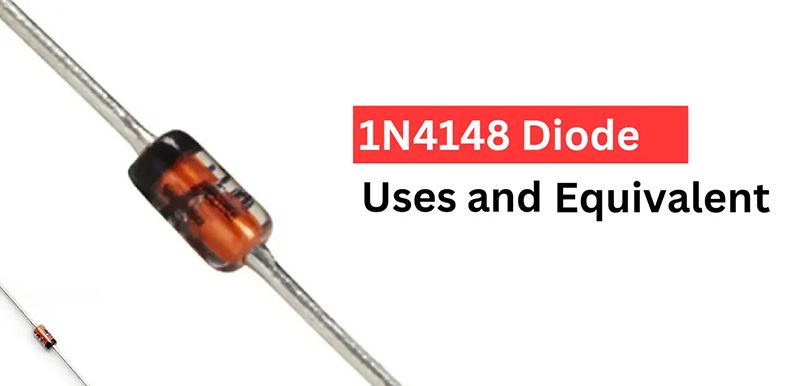

What is a 1N4148 Diode?

The 1N4148 is a widely used high-speed switching diode designed for fast signal switching in electronic circuits. It is a small-signal silicon diode known for its fast reverse recovery time, low junction capacitance, and reliable performance in high-speed switching applications. These characteristics make it suitable for signal processing, logic circuits, pulse shaping, and general-purpose electronic designs.

Unlike rectifier diodes designed primarily to convert AC into DC at relatively high currents, the 1N4148 is optimized for switching small currents and handling rapidly changing signals. It is commonly used in consumer electronics, industrial control systems, communication equipment, and other electronic devices that require fast and dependable signal switching.

The 1N4148 typically comes in a compact DO-35 axial-leaded package, although surface-mount versions and compatible variants are also available.

In summary, the 1N4148 is a general-purpose, high-speed switching diode that provides fast and reliable signal control in low-current electronic circuits.

What Type of Diode is the 1N4148?

The 1N4148 is a silicon PN-junction diode classified as a high-speed small-signal switching diode. It is designed primarily for switching electrical signals rather than handling high power, distinguishing it from power rectifier diodes and other specialized diode types.

Different diodes serve different purposes in electronic circuits. For example, Zener diodes are commonly used for voltage regulation, while light-emitting diodes (LEDs) convert electrical energy into light. The 1N4148, by contrast, is intended for controlling current flow and switching signals in electronic circuits.

Although both the 1N4148 and Schottky diodes are used in fast-switching applications, their internal structures differ. The 1N4148 uses a silicon PN junction, whereas a Schottky diode uses a metal-semiconductor junction. This structural difference results in different electrical characteristics and switching behavior.

As a general-purpose switching diode, the 1N4148 can also be used for signal rectification, waveform shaping, voltage clamping, and logic-level switching.

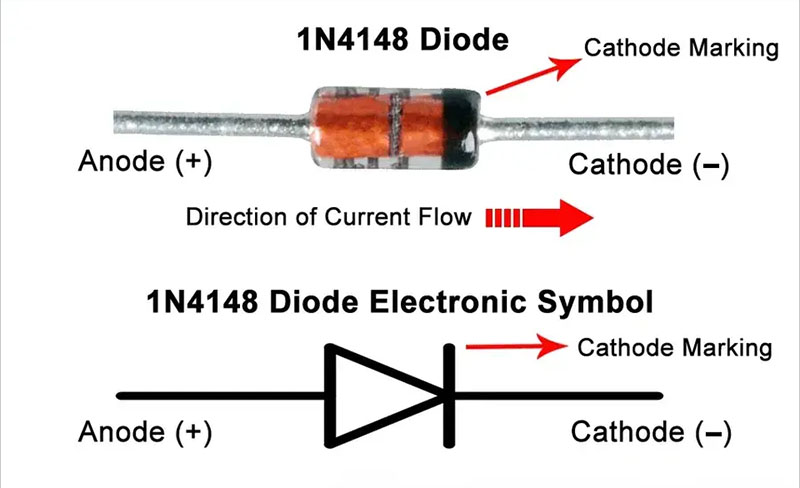

How Does a 1N4148 Diode Work?

The 1N4148 diode works by allowing current to flow primarily in one direction while restricting current flow in the opposite direction. This behavior is based on its silicon PN-junction structure, which creates different electrical conditions depending on the applied voltage polarity.

1. Forward Bias

When the anode is connected to a higher voltage than the cathode, the 1N4148 is forward-biased. Once the applied voltage is sufficient to overcome the junction's forward voltage, current flows through the diode. For a silicon 1N4148, the forward voltage is commonly around 0.6–0.8 V at modest current levels, although the actual value depends on current and temperature.

2. Reverse Bias

When the cathode is connected to a higher voltage than the anode, the diode is reverse-biased. Under normal operating conditions, it blocks current flow, allowing only a small reverse leakage current. If the reverse voltage exceeds the diode's rated limit, breakdown may occur and potentially damage the component.

3. High-Speed Switching

One of the defining characteristics of the 1N4148 is its ability to switch rapidly between conducting and blocking states. When the voltage polarity changes, the diode transitions between forward conduction and reverse blocking. Its short reverse recovery time-typically specified at around 4 ns under particular test conditions-makes it useful in circuits that process fast-changing signals.

4. Current Flow in Electronic Circuits

The 1N4148's directional conductivity allows designers to control how signals move through a circuit. Depending on the circuit configuration, it can steer signals between different paths, clip unwanted voltage levels, shape waveforms, or perform low-current rectification.

In summary, the 1N4148 operates through the directional behavior of a silicon PN junction. Its ability to conduct in forward bias, block current in reverse bias, and switch quickly.

1N4148 Small Signal Fast Switching Diodes Specifications

These parameters define the diode's voltage and current limits, switching behavior, and electrical characteristics under specified operating conditions. Engineers typically refer to the manufacturer's datasheet to verify these ratings before selecting the component for a particular design.

Although the 1N4148 is a standardized part number, certain specifications may vary slightly among manufacturers and related variants. The following table summarizes commonly referenced electrical parameters for the 1N4148.

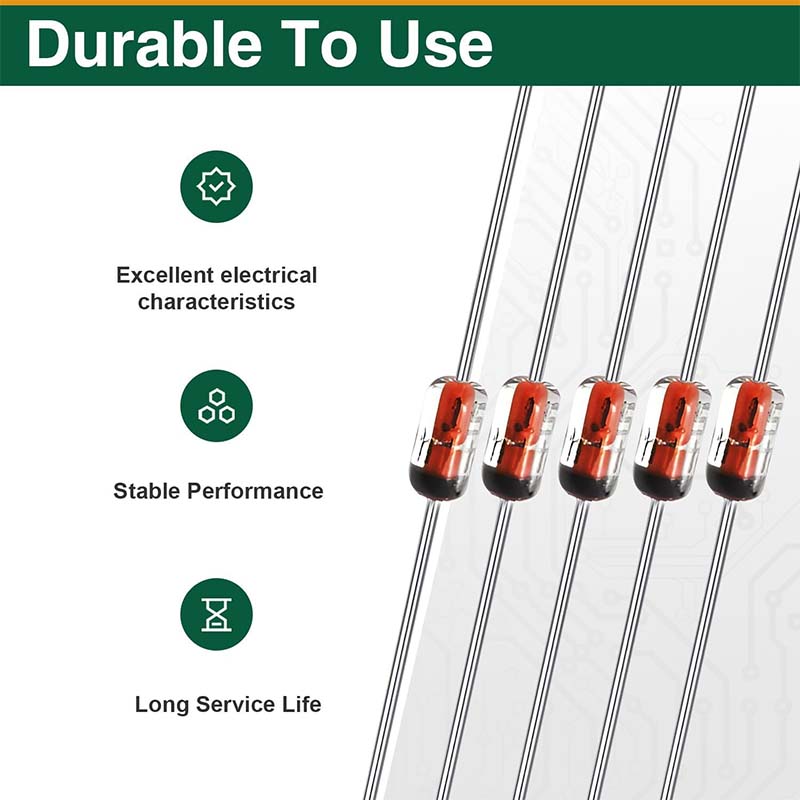

Features of the 1N4148 Diode

The 1N4148 diode offers several characteristics that make it a popular choice for small-signal switching and general-purpose electronic circuits.

Fast Switching Speed: With a reverse recovery time as short as 4 ns under specified test conditions, the 1N4148 is suitable for circuits that require rapid transitions between conducting and blocking states.

Low Junction Capacitance: Its low capacitance, typically specified at a few picofarads, helps minimize capacitive loading in high-speed signal paths.

Low Reverse Leakage Current: The diode exhibits low leakage under normal reverse-bias conditions, helping maintain signal integrity in many low-current applications.

Suitable Forward Voltage: As a silicon PN-junction diode, it provides a forward voltage drop that varies with current and temperature, making it suitable for conventional signal-switching functions.

Compact Package: Commonly available in the DO-35 axial-leaded glass package, the 1N4148 is easy to integrate into through-hole circuit designs. Surface-mount alternatives are also available.

Versatile Circuit Applications: It supports signal rectification, waveform shaping, voltage clamping, signal steering, and logic-level switching.

Wide Availability: Its long-established use in electronics makes it widely available from multiple semiconductor manufacturers, with datasheets and compatible alternatives readily accessible.

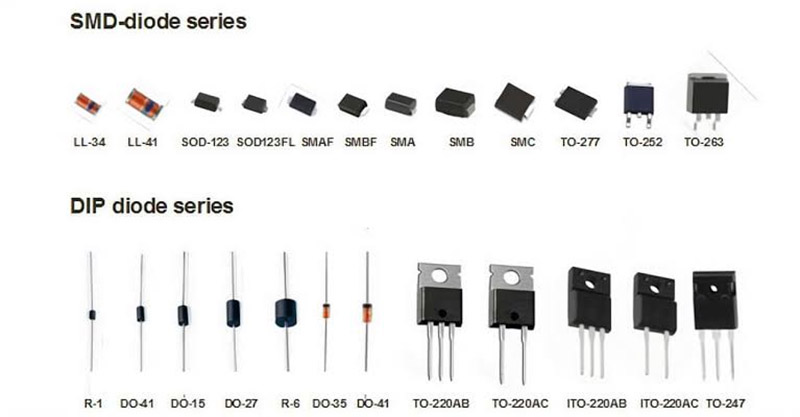

Packages of 1N4148 Switching Diodes

The 1N4148 diode and its compatible variants are available in several package formats to meet different PCB layouts, assembly methods, and space requirements. The traditional DO-35 package is commonly used in through-hole designs, while surface-mount packages such as LL34, SOD-323, and SOT-23 are used in compact electronic assemblies when offered by the relevant manufacturer.

DO-35

The DO-35 is a traditional axial-leaded glass package widely associated with the standard 1N4148 diode. It features a small cylindrical glass body with metal leads extending from both ends, making it suitable for through-hole PCB mounting.

LL34

LL34 is a cylindrical surface-mount package used for certain small-signal diodes. Its compact, leadless-style construction supports PCB designs that require surface-mount assembly and reduced board space compared with traditional axial-leaded components.

SOD-323

SOD-323 is a compact surface-mount package designed for space-constrained electronic applications. Its small footprint makes it suitable for densely populated PCBs and automated pick-and-place assembly.

Switching diodes offered in SOD-323 packages can be used in applications such as signal conditioning, digital circuits, and compact consumer electronics, provided their electrical specifications meet the design requirements.

SOT-23

SOT-23 is a small surface-mount package commonly used for transistors, diodes, and other semiconductor components. It typically has three terminals, although the package designation alone does not establish the internal circuit configuration.

What is 1N4148 Diode Used For?

The 1N4148 diode is widely used in electronic circuits that require fast signal switching and precise control of current flow. Its versatility makes it suitable for a variety of applications in digital electronics, communication equipment, industrial control systems, and general-purpose circuit design.

• Signal Rectification: Converts AC or alternating signal components into unidirectional current in low-current signal circuits.
• Waveform Shaping: Clips, limits, or modifies signal waveforms to achieve the desired voltage levels and signal characteristics.
• Voltage Clamping and Protection: Helps limit voltage excursions and protect sensitive circuit nodes from certain transient conditions when used in an appropriately designed protection network.
• High-Speed Switching: Controls current flow in fast-switching circuits, including pulse-processing and timing applications.
• Digital Logic Circuits: Supports diode logic, signal steering, and other circuit functions involving digital signals.
• Signal Detection and Demodulation: Can be used in simple detection circuits to extract information from modulated signals.
• Reverse-Polarity Protection: Provides a basic means of preventing reverse current or protecting a circuit from incorrect supply polarity, depending on the circuit configuration.

The 1N4148 is particularly useful in low-current signal applications where fast response and compact component size are important. However, it is not intended to replace high-current rectifier diodes or specialized protection devices when higher power handling or more robust transient suppression is required.

The Best Models to 1N4148 Diode Equivalents

A suitable equivalent should offer compatible reverse-voltage and forward-current ratings, switching speed, junction capacitance, package type, and electrical characteristics.

The 1N4148 is a high-speed silicon small-signal switching diode, so the most suitable replacements are generally other switching diodes with similar specifications.

NOT true equivalents (use only in low-speed non-critical circuits)

1N4001/1N4007: Slow rectifier diodes, very long reverse recovery time, not for high-speed switching.

BAT41/1N5817: Schottky diodes, much lower Vf, different capacitance & leakage, cannot substitute for 1N4148 in most signal switching circuits.

Diode Major Manufacturers

The 1N4148 switching diode is a widely established semiconductor component produced by several semiconductor manufacturers.

When sourcing 1N4148 diodes for electronic manufacturing, engineers and purchasing teams should verify the manufacturer's datasheet, electrical ratings, package type, and product availability to ensure the selected component meets their requirements.

Major Manufacturers of 1N4148 Diodes

Vishay - Offers the 1N4148 small-signal fast switching diode in a DO-35 package.
Vishay Intertechnology is a well-established manufacturer of discrete semiconductors and passive electronic components. Its product portfolio serves a broad range of markets, including industrial electronics, automotive systems, computing, telecommunications, and consumer electronics.

Nexperia - Lists the 1N4148 in its high-speed diode portfolio. Nexperia notes that production and sales of its glass-diode 1N4148 family have been taken over by TAK CHEONG under license.

Diodes Incorporated - Has a 1N4148 product listing, currently marked NRND (Not Recommended for New Design), so buyers should confirm current availability and lifecycle status.

Diodes Incorporated is a global semiconductor manufacturer specializing in discrete, logic, analog, and mixed-signal semiconductor products.

Onsemi

onsemi is a global semiconductor manufacturer specializing in intelligent power and sensing technologies, with a broad portfolio of discrete semiconductors, power management solutions, and integrated circuits for automotive, industrial, and other electronic applications.

The company offers the 1N4148 high-speed switching diode in axial-leaded packages, including the 1N4148-T50A and 1N4148-T50R variants. These devices are designed for small-signal switching applications and feature a 100 V reverse-voltage rating and a maximum forward current of 300 mA, according to onsemi's product information.

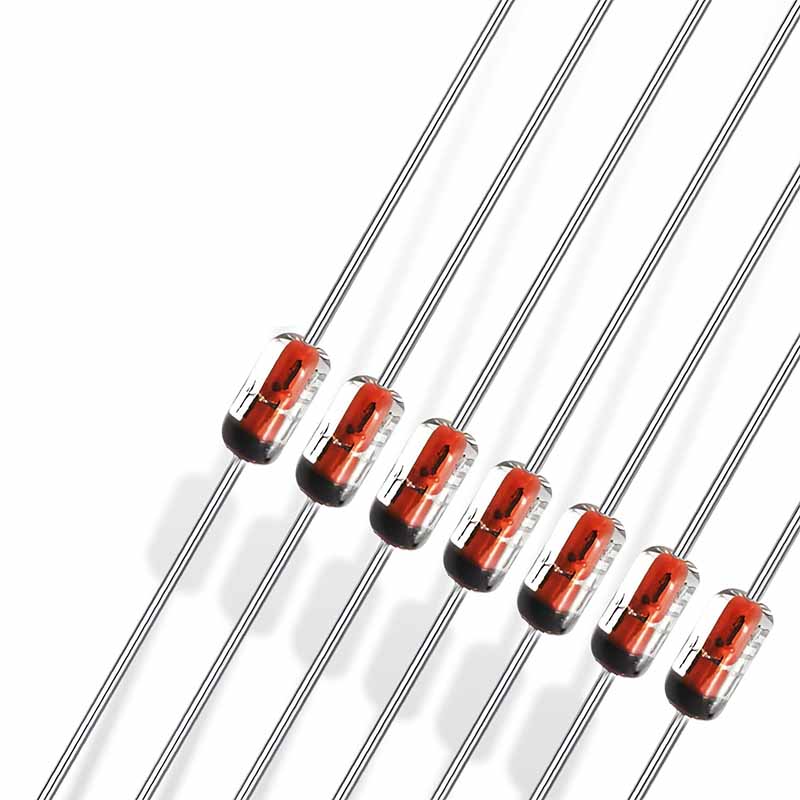

Source Transistor, Diodes & Power Semiconductors at Eastech

Whether you need any diodes or are sourcing compatible switching diode alternatives, Eastech can help you identify suitable components based on your part number, manufacturer, package requirements, and project needs.

Eastech specializes in electronic component distribution, providing sourcing solutions for a wide range of electronic manufacturing and engineering needs. Our product portfolio covers semiconductor devices, memory chips, integrated circuits (ICs), and other electronic components, serving diverse applications across industrial electronics, automotive systems, telecommunications, medical equipment, and more.

Whether you are sourcing specific components for ongoing production, developing new electronic products, or managing supply chain requirements, Eastech is committed to helping customers identify the components they need. With a focus on professional sourcing support and responsive service, we aim to simplify electronic component procurement and help businesses maintain efficient operations.

Eastech - Your partner for electronic component sourcing.

The Bottom Line :

The 1N4148 remains a popular choice for electronic circuits requiring fast, reliable signal switching. When a replacement is needed, identifying a suitable 1N4148 diode equivalent requires careful comparison of voltage ratings, forward current, switching speed, and package compatibility. By verifying these parameters against manufacturer datasheets, engineers can ensure reliable circuit performance and make informed component sourcing decisions. For semiconductor devices, memory chips, integrated circuits, and other electronic components, Eastech provides sourcing support to meet diverse electronic manufacturing requirements.
