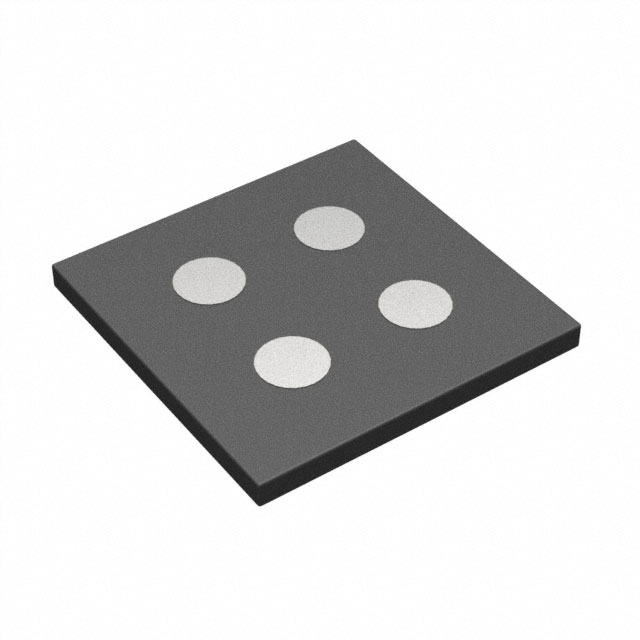

Panasonic Electronic Components FC4B22270L1
- Part No.:
- FC4B22270L1
- Manufacturer:
- Panasonic Electronic Components
- Category:
- FET, MOSFET Arrays
- Package:
- 4-XFLGA, CSP
- Datasheet:
FC4B22270L1.pdf
- Description:
- MOSFET 2N-CH ULGA004
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Inventory:5,913
Send us your inquiry,we will respond immediately.
FC4B22270L1 Specifications
- Specifications
- The Posts
- Related
- Attributes
- Property Value
- Manufacturer
- Panasonic Electronic Components
- Series:
- -
- Package/Case:
- 4-XFLGA, CSP
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Obsolete
- Technology:
- MOSFET (Metal Oxide)
- Configuration:
- 2 N-Channel (Dual)
- FET Feature:
- -
- Drain to Source Voltage (Vdss):
- -
- Current - Continuous Drain (Id) @ 25°C:
- -
- Rds On (Max) @ Id, Vgs:
- -
- Vgs(th) (Max) @ Id:
- 1.4V @ 310µA
- Gate Charge (Qg) (Max) @ Vgs:
- 9nC @ 4V
- Input Capacitance (Ciss) (Max) @ Vds:
- 910pF @ 10V
- Power - Max:
- 1.5W (Ta)
- Operating Temperature:
- 150°C
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- ULGA004-W-1313-RA
- Category:
- FET, MOSFET Arrays
