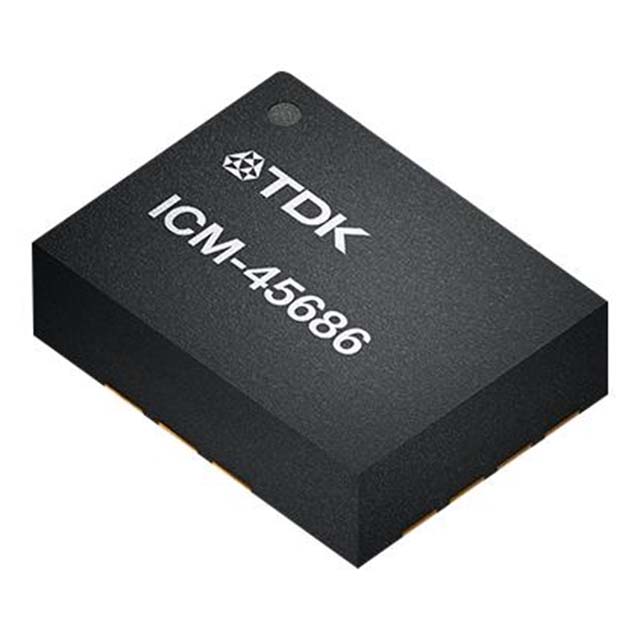

TDK InvenSense ICM-45686
- Part No.:
- ICM-45686
- Manufacturer:
- TDK InvenSense
- Category:
- IMUs (Inertial Measurement Units)
- Package:
- 14-VFLGA
- Datasheet:
-
ICM-45686.pdf
- Description:
- High-Precision 6-Axis MEMS MotionTracking® Device
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Inventory:4,951
Send us your inquiry,we will respond immediately.
Product Details
ICM-45686 | Ultra-High Precision 6-Axis MEMS MotionTracking™ IMU
The ICM-45686 is a cutting-edge 6-axis MEMS inertial measurement unit (IMU) designed to deliver industrial-grade motion sensing for consumer and commercial electronics. By leveraging advanced SPI and I2C communication protocols, this sensor provides seamless data logging for high-speed accelerometers, precision gyroscopes, and internal temperature sensors.
Beyond raw data, the ICM-45686 features a suite of on-chip embedded algorithms, including Tap Detection, Tilt Recognition, Pedometer functions, and Wake-on-Motion (WoM). It is the definitive solution for developers looking to integrate sophisticated motion intelligence into their hardware with minimal overhead.
Features
Comprehensive 9-Axis Fusion
While natively a 6-axis IMU, it supports full 9-axis sensor fusion (Gyro + Accel + external Magnetometer) for absolute orientation tracking.
Ultra-Low Noise Floor
Achieves superior signal integrity and high-fidelity data capture, even in high-vibration or chaotic environments.
Extreme Power Efficiency
Optimized for battery-critical applications, significantly extending the operational lifespan of portable electronics.
Flexible Connectivity
Dual SPI/I2C interface support ensures compatibility with a vast range of host processors and application frameworks.Applications
This low-power 6-axis motion sensor features a gyroscope low-power mode that reduces the current consumption of the 6-axis IMU to below 200 µA, making it an ideal choice for wearables, earbuds, and a wide range of battery-powered IoT applications.
- Next-Gen IoT Ecosystems: Facilitates precise environmental monitoring and smart automation through motion-triggered events.
- Immersive AR/VR/XR: Powers high-refresh-rate tracking in controllers and headsets to eliminate latency and enhance user immersion.
- UAV & Drone Stabilization: Provides the critical stability and orientation data required for autonomous flight and smooth aerial cinematography.
- Advanced Robotics: Enhances pathfinding, balance, and spatial awareness for mobile robotic platforms and collaborative arms.
- Wearable Health & Fitness: Delivers clinical-grade step counting and activity recognition for smartwatches and medical monitors.
- Sensor Array: 3-Axis Gyroscope, 3-Axis Accelerometer.
- Interface: I3C℠, I2C, and SPI (up to 24 MHz).
- Smart Functions: Pedometer, Tilt, Raise to Wake, Tap/Double Tap.
- Package Type: Compact LGA for space-constrained designs.
- Pro-Tip for Developers: To achieve the best thermal stability, ensure the ICM-45686 is mounted away from high-heat components like power regulators on your custom PCB layout.
ICM-45686 Specifications
- Specifications
- The Posts
- Related
- Attributes
- Property Value
- Manufacturer
- TDK InvenSense
- Series:
- SmartMotion™
- Package/Case:
- 14-VFLGA
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Sensor Type:
- Accelerometer, Gyroscope, 6 Axis
- Output Type:
- I2C, I3C, SPI
- Operating Temperature:
- -
- Grade:
- -
- Qualification:
- -
- Supplier Device Package:
- 14-LGA (2.5x3)
- Mounting Type:
- Surface Mount
- Category:
- IMUs (Inertial Measurement Units)
