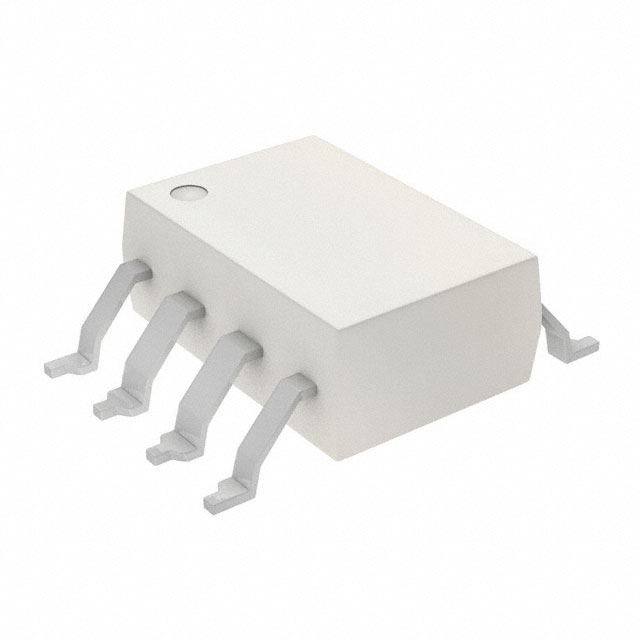

Fairchild Semiconductor FOD3120TSR2
- Part No.:
- FOD3120TSR2
- Manufacturer:
- Fairchild Semiconductor
- Category:
- Isolators - Gate Drivers
- Package:
- 8-SMD, Gull Wing
- Datasheet:
-
FOD3120TSR2.pdf
- Description:
- OPTOISO 5KV 1CH GATE DVR 8SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Inventory:0
Send us your inquiry,we will respond immediately.
FOD3120TSR2 Specifications
- Specifications
- The Posts
- Related
- Attributes
- Property Value
- Manufacturer
- Fairchild Semiconductor
- Series:
- OPTOPLANAR®
- Package/Case:
- 8-SMD, Gull Wing
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Technology:
- Optical Coupling
- Number of Channels:
- 1
- Voltage - Isolation:
- 5000Vrms
- Common Mode Transient Immunity (Min):
- 35kV/µs
- Propagation Delay tpLH / tpHL (Max):
- 400ns, 400ns
- Pulse Width Distortion (Max):
- 100ns
- Rise / Fall Time (Typ):
- 60ns, 60ns
- Current - Output High, Low:
- 2A, 2A
- Current - Peak Output:
- 3A
- Voltage - Forward (Vf) (Typ):
- 1.5V
- Current - DC Forward (If) (Max):
- 25 mA
- Voltage - Output Supply:
- 15V ~ 30V
- Grade:
- -
- Qualification:
- -
- Operating Temperature:
- -40°C ~ 100°C
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 8-SMD
- Approval Agency:
- UL
- Category:
- Isolators - Gate Drivers
