Mission Microwave Technologies KU250W-BUC
- Part No.:
- KU250W-BUC
- Manufacturer:
- Mission Microwave Technologies
- Category:
- RF Amplifiers
- Package:
- Module
- Datasheet:
- Description:
- KU250 Series Ku Band 250W BUC
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Inventory:1,000
Send us your inquiry,we will respond immediately.
Product Details

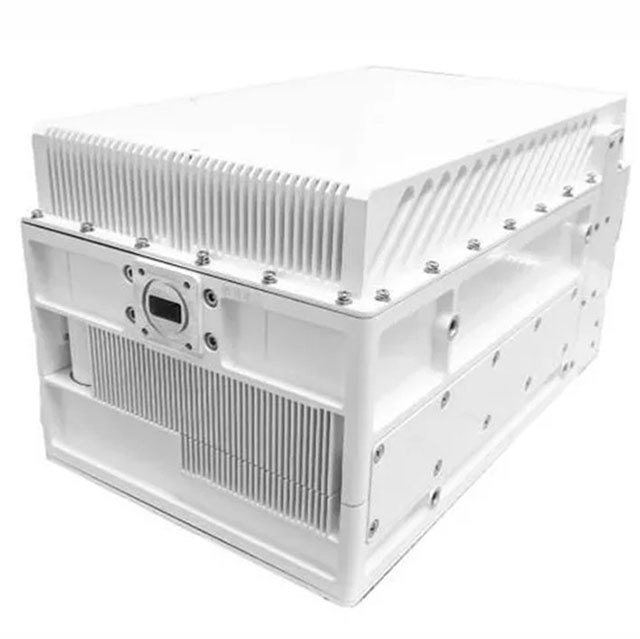

KU250 Series Ku Band 250W BUC for Satellite Communication
The KU250 series consists of upconversion power amplifiers (BUCs) for satellite communications with a rated output power of 250 W in the KU band. Designed using the industry's most advanced GaN technology, these amplifiers deliver efficient and reliable power output and are primarily used in ground stations. The products feature functions such as temperature monitoring, current monitoring, power monitoring, and alarm protection.
Operating at an RF frequency range of 13.75–14.5 GHz, the KU250W combines high-power amplification with advanced RF performance. The module supports gain adjustment and features low phase noise and excellent spurious suppression, helping maintain signal quality and transmission stability in satellite communication applications.
Powered by AC 220V and housed in an IP66-rated enclosure, the KU250W is designed for reliable operation in demanding environments. Its compact and efficient design makes it suitable for integration into satellite communication equipment, ground stations, and other high-power Ku-band RF transmission systems.
Key Features
Product Type: Ku-Band BUC / SSPA
Output Power: 250W
Frequency Range: 13.75–14.5 GHz RF
Application: Satellite Communication
Gain Adjustment: Supported
Phase Noise: Low phase noise
Spurious Suppression: Excellent spurious performance
Power Supply: AC 220V
Protection Rating: IP66
Design: High efficiency and compact form factor
Performance: High reliability and stable RF output
Applications
The Cascade-Line KU250W is suitable for a variety of Ku-band satellite communication applications, including:
- Satellite communication ground stations
- Satellite uplink systems
- Ku-band RF transmission systems
- Satellite broadband communication
- Commercial satellite communication infrastructure
- High-power RF communication equipment
| Electrical Performance Specifications | |||
| -Output Frequency: 13.75 GHz–14.5 GHz | |||
| 14 GHz–14.5 GHz | |||
| -Input Frequency: 0.95–1.7 GHz | |||
| 0.95–1.45 GHz | |||
| -Local Oscillator Frequency: 12.8/13.05 GHz | |||
| -Reference Frequency: 10 MHz, 0 dBm ±5, IF port | |||
| -Small-Signal Gain : ≥75 dB | |||
| -IF Rated Input Power: -20 dBm | |||
| -Gain Adjustment: 20 dB in 0.5 dB steps | |||
| -Gain Flatness: ≤1.2 dB/40 MHz | |||
| ≤3.0 dB/500 MHz | |||
| ≤4.0 dB/750 MHz | |||
| -Gain Stability: ≤4 dB over the full temperature range | |||
| -Saturation Output Power: ≥54 dBm | |||
| -Rated Output Power: 54 dBm | |||
| -IMD3: ≤-25 dBc @ rated output power with 3 dB Back-off | |||
| -Spurious: ≤-55 dBc @ rated output power | |||
| -Phase Noise: ≤-65 dBc/Hz @ 100 Hz | |||
| ≤-75 dBc/Hz @ 1 kHz | |||
| ≤-85 dBc/Hz @ 10 kHz | |||
| ≤-95 dBc/Hz @ 100 kHz |
-In-band noise: ≤-76 dBm/Hz
-Input VSWR: ≤1.5:1
-Power supply: AC 220 V ±15%
-Power consumption: ≤1300 W (typical)
Mechanical Specifications
-Input IF Connector: N-F, 50 Ohms
-Output Connector: WR-75
-Monitoring interface: MS3112E-14-19P
-Power Supply Interface: MS3102A-16-10P
-Monitoring Method: RJ45/RS485 (selectable)
-Dimensions: 330 × 200 × 180 mm
-Weight: ≤13 kg
Environmental Specifications
-Operating Temperature: -40–55°C
-Storage Temperature: -45–75°C
-Water and Dust Resistance: IP65
Product Structure
The following diagrams are for reference only
KU250W-BUC Specifications
- Specifications
- The Posts
- Related
- Attributes
- Property Value
- Manufacturer
- Mission Microwave Technologies
- Series:
- KU250
- Package/Case:
- Module
- Packaging:
- Product Status:
- Active
- Frequency:
- S:14.00-14.50 GHz, E: 13.75-14.50 GHz
- P1dB:
- Gain:
- 75 dB
- Noise Figure:
- RF Type:
- Amplifier,Buc
- Voltage - Supply:
- Current - Supply:
- Test Frequency:
- Grade:
- Qualification:
- Mounting Type:
- Supplier Device Package:
- Category:
- RF Amplifiers
