LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GW6DME30NFCLED COB MEGA ZENIGATA RECT |
0 |
|
- |
Mega Zenigata | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Rectangle | - | 950mA | - | 50V | - | 1.5A | 80 | - | - | 20.00mm L x 24.00mm W | 1.80mm | - | Flat |
|
|
GW6DME40NFCLED COB MEGA ZENIGATA RECT |
0 |
|
- |
Mega Zenigata | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K | - | Rectangle | - | 950mA | - | 50V | - | 1.5A | 80 | - | - | 20.00mm L x 24.00mm W | 1.80mm | - | Flat |
|
|
GW6DGE30NFCLED COB MEGA ZENIGATA RECT |
0 |
|
- |
Mega Zenigata | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Rectangle | - | 950mA | - | 50V | - | 1.5A | 90 | - | - | 20.00mm L x 24.00mm W | 1.80mm | - | Flat |
|
|
GW6DMD27NFCLED COB MEGA ZENIGATA RECT |
0 |
|
Datasheet |
Mega Zenigata | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K | - | Rectangle | - | 950mA | - | 37V | - | 1.3A | 80 | - | - | 20.00mm L x 24.00mm W | 1.80mm | - | Flat |
|
|
GW6DMD30NFCLED COB MEGA ZENIGATA RECT |
0 |
|
Datasheet |
Mega Zenigata | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Rectangle | - | 950mA | - | 37V | - | 1.3A | 80 | - | - | 20.00mm L x 24.00mm W | 1.80mm | - | Flat |
|
|
GW6DMD40NFCLED COB MEGA ZENIGATA RECT |
0 |
|
Datasheet |
Mega Zenigata | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K | - | Rectangle | - | 950mA | - | 37V | - | 1.3A | 80 | - | - | 20.00mm L x 24.00mm W | 1.80mm | - | Flat |
|
|
GW6DGD40NFCLED COB MEGA ZENIGATA RECT |
0 |
|
- |
Mega Zenigata | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K | - | Rectangle | - | 950mA | - | 37V | - | 1.3A | 90 | - | - | 20.00mm L x 24.00mm W | 1.80mm | - | Flat |
|
|
GW6DMC30NFCLED COB MEGA ZENIGATA RECT |
0 |
|
- |
Mega Zenigata | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Rectangle | - | 700mA | - | 37V | - | 1.05A | 80 | - | - | 20.00mm L x 24.00mm W | 1.80mm | - | Flat |
|
|
GW6DMC50NFCLED COB MEGA ZENIGATA RECT |
0 |
|
- |
Mega Zenigata | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K | - | Rectangle | - | 700mA | - | 37V | - | 1.05A | 80 | - | - | 20.00mm L x 24.00mm W | 1.80mm | - | Flat |
|
|
GW6DGC40NFCLED COB MEGA ZENIGATA RECT |
0 |
|
- |
Mega Zenigata | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K | - | Rectangle | - | 700mA | - | 37V | - | 1.05A | 90 | - | - | 20.00mm L x 24.00mm W | 1.80mm | - | Flat |
|

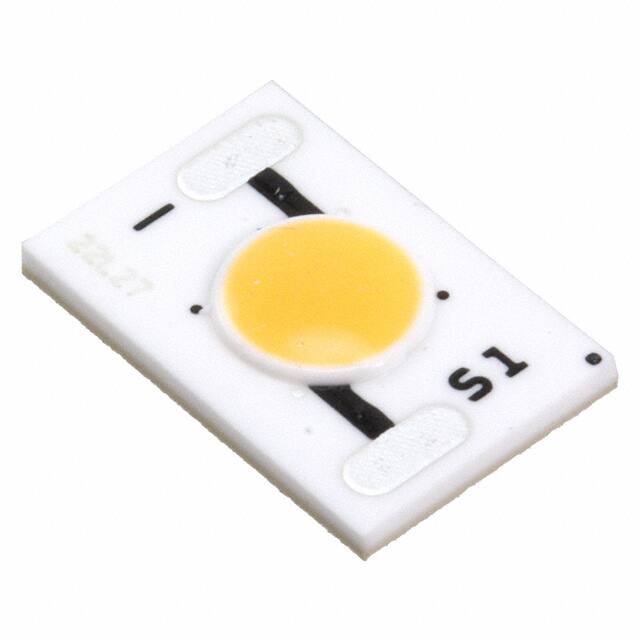

GW5SGD30P05LED COB PETITE ZENIGATA WHT RECT |
0 |
|
- |
Petite Zenigata | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Rectangle | 330lm (Typ) | 500mA | 25°C | 9.6V | 69 lm/W | 560mA | 90 | - | - | 8.00mm L x 12.00mm W | 1.80mm | - | Flat |
|
|
GW5SMB30P0CLED COB PETITE ZENIGATA WHT RECT |
0 |
|
- |
Petite Zenigata | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Rectangle | 280lm (Typ) | 350mA | 25°C | 10.3V | 78 lm/W | 380mA | 80 | - | - | 8.00mm L x 12.00mm W | 1.80mm | - | Flat |
|
|
GW5SMB40P0CLED COB PETITE ZENIGATA WHT RECT |
0 |
|
- |
Petite Zenigata | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K | - | Rectangle | 300lm (Typ) | 350mA | 25°C | 10.3V | 83 lm/W | 380mA | 80 | - | - | 8.00mm L x 12.00mm W | 1.80mm | - | Flat |
|
|
GW6DME60NFCLED COB MEGA ZENIGATA RECT |
0 |
|
- |
Mega Zenigata | Tray | Obsolete | Chip On Board (COB) | White, Cool | 6000K | - | Rectangle | - | 950mA | - | 50V | - | 1.5A | 80 | - | - | 20.00mm L x 24.00mm W | 1.80mm | - | Flat |
|
|
GW6DMD60NFCLED COB MEGA ZENIGATA RECT |
0 |
|
- |
Mega Zenigata | Tray | Obsolete | Chip On Board (COB) | White, Cool | 6000K | - | Rectangle | - | 950mA | - | 37V | - | 1.3A | 80 | - | - | 20.00mm L x 24.00mm W | 1.80mm | - | Flat |
|
|
GW6DGD50NFCLED COB MEGA ZENIGATA RECT |
0 |
|
- |
Mega Zenigata | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 5000K | - | Rectangle | - | 950mA | - | 37V | - | 1.3A | - | - | - | 20.00mm L x 24.00mm W | 1.80mm | - | Flat |
|
|
GW6DMA60NFCLED COB MEGA ZENIGATA RECT |
0 |
|
- |
Mega Zenigata | Tray | Obsolete | Chip On Board (COB) | White, Cool | 6000K | - | Rectangle | - | 400mA | - | 37V | - | 700mA | 80 | - | - | 20.00mm L x 24.00mm W | 1.80mm | - | Flat |
|
|
GW6DMA50NFCLED COB MEGA ZENIGATA RECT |
0 |
|
- |
Mega Zenigata | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K | - | Rectangle | - | 400mA | - | 37V | - | 700mA | 80 | - | - | 20.00mm L x 24.00mm W | 1.80mm | - | Flat |
|
|
GW6DMA40NFCLED COB MEGA ZENIGATA RECT |
0 |
|
- |
Mega Zenigata | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K | - | Rectangle | - | 400mA | - | 37V | - | 700mA | 80 | - | - | 20.00mm L x 24.00mm W | 1.80mm | - | Flat |
|
|
GW6DMA35NFCLED COB MEGA ZENIGATA RECT |
0 |
|
- |
Mega Zenigata | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K | - | Rectangle | - | 400mA | - | 37V | - | 700mA | 80 | - | - | 20.00mm L x 24.00mm W | 1.80mm | - | Flat |
