DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVAL-ADPL76030EBZEVAL BOARD FOR ADPL76030 |
4 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 4A | 4V ~ 55V | Buck-Boost | 1.4MHz | Board(s) | ADPL76030 |
|

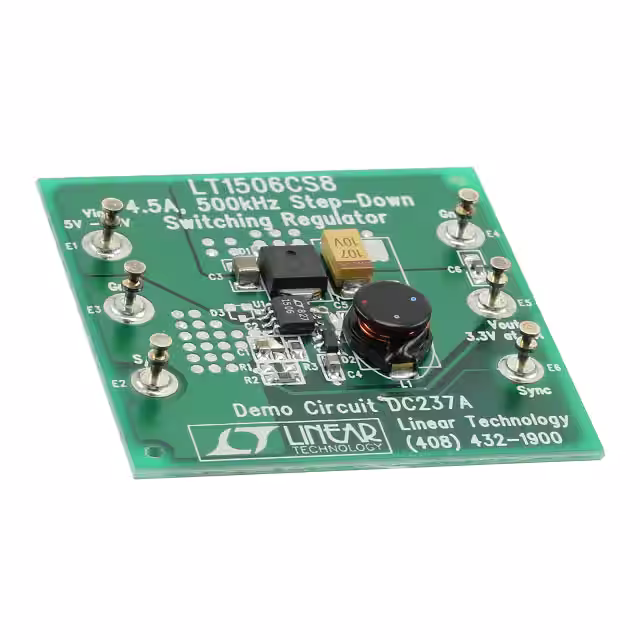

DC237AEVAL BOARD FOR LT1506 |
1 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 4A | 4.5V ~ 15V | Buck | 500kHz | Board(s) | LT1506 |
|

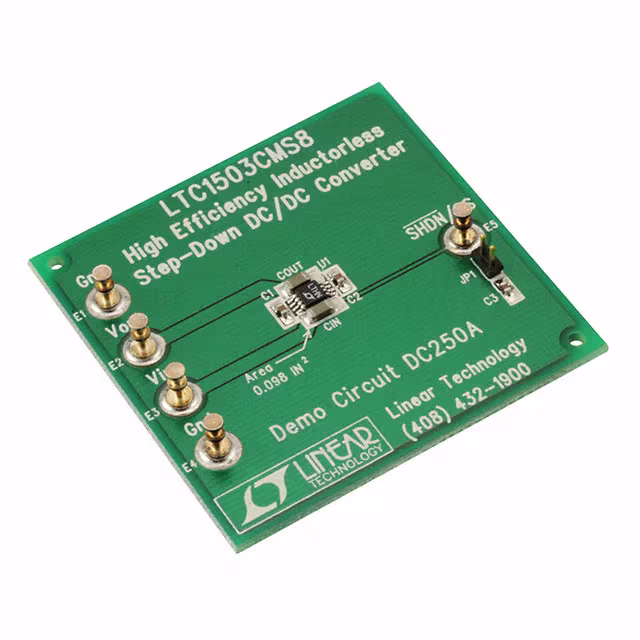

DC250A-AEVAL BOARD FOR LTC15031.8 |
1 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 100mA | 2.4V ~ 6V | Buck | 600kHz | Board(s) | LTC1503-1.8 |
|

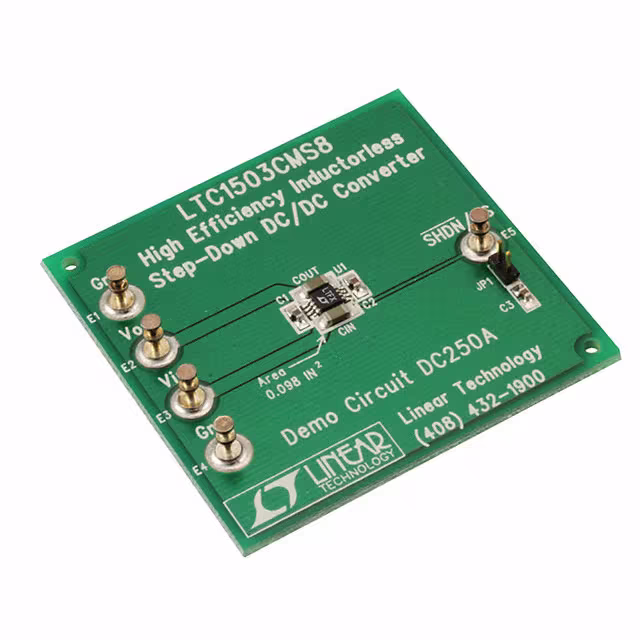

DC250A-BEVAL BOARD FOR LTC15032 |
1 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2V | 100mA | 2.4V ~ 6V | Buck | 600kHz | Board(s) | LTC1503-2 |
|

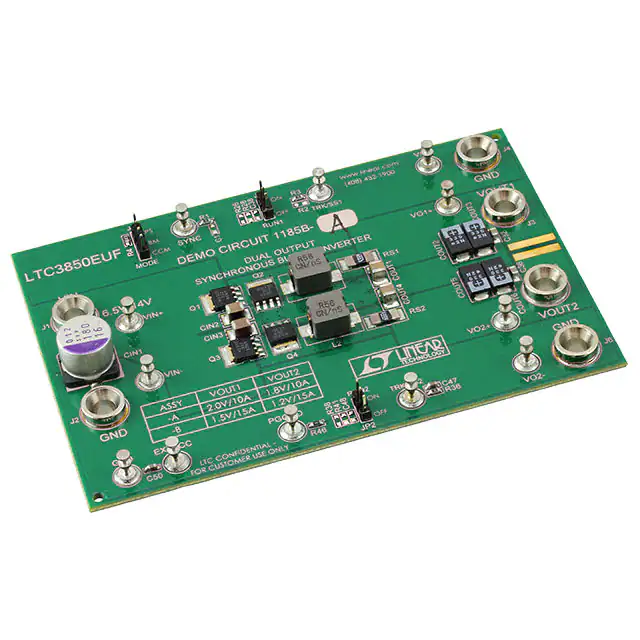

DC1185B-AEVAL BOARD FOR LTC3850 |
1 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 2V | 10A, 10A | 6.5V ~ 14V | Buck | 500kHz | Board(s) | LTC3850 |
|

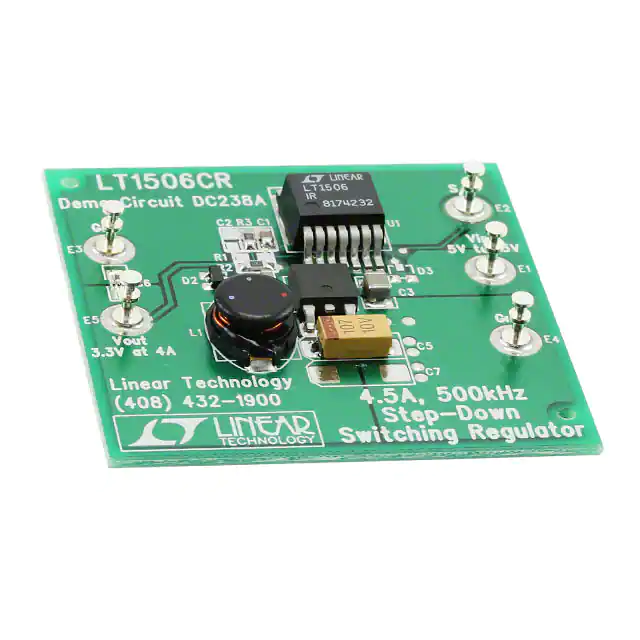

DC238AEVAL BOARD FOR LT1506 |
1 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 4A | 4.5V ~ 15V | Buck | 500kHz | Board(s) | LT1506 |
|
|
MAX20011BEVKIT#EVAL BOARD FOR MAX20011B |
0 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.5V ~ 1.275V | 16A | 3V ~ 5.5V | Buck | 2.2MHz | Board(s) | MAX20011B |
|
|
I1C2W10A-C01-EVK-S1EVAL BOARD FOR I1C2W010A120V001R |
10 |
|
Datasheet |
i1C | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | 200 W | 12V | 10A | 9V ~ 36V | Buck-Boost | 250kHz | Board(s) | i1C2W010A120V-001-R |
|
|
MAX42410EVKIT#EVAL BOARD FOR MAX42410 |
8 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 0.8V ~ 6V | 10A | 4.5V ~ 36V | Buck | 1.5MHz | Board(s) | MAX42410 |
|
|
EVAL-LTC3313EV-A-ZEVAL BOARD FOR LTC3313 |
2 |
|
Datasheet |
Silent Switcher® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 15A | 2.25V ~ 5.5V | Buck | - | Board(s) | LTC3313 |
|

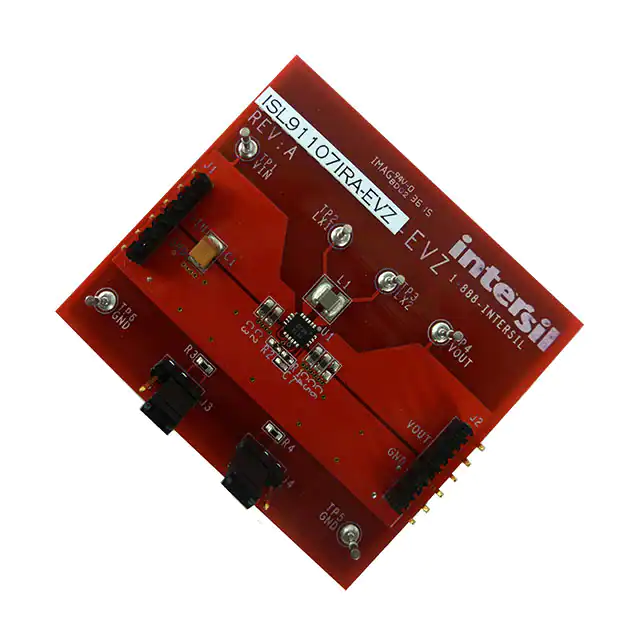

ISL91107IRA-EVZEVAL BOARD FOR ISL91107IR |
6 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 2A | 1.8V ~ 5.5V | Buck-Boost | 2.5MHz | Board(s) | ISL91107IR |
|
|
DC1313AEVAL BOARD FOR LT1912 |
2 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2A | 6.3V ~ 36V | Buck | 500kHz | Board(s), Accessories | LT1912 |
|
|
DC1636AEVAL BOARD FOR LT3574 |
2 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 350mA | 10V ~ 30V | Flyback | - | Board(s) | LT3574 |
|
|
DC2906AEVAL BOARD FOR LT8302 |
2 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 3 Isolated Outputs | - | ±15V, 5V | 400mA, 100mA, 100mA | 4.5V ~ 28V | Flyback | - | Board(s) | LT8302 |
|

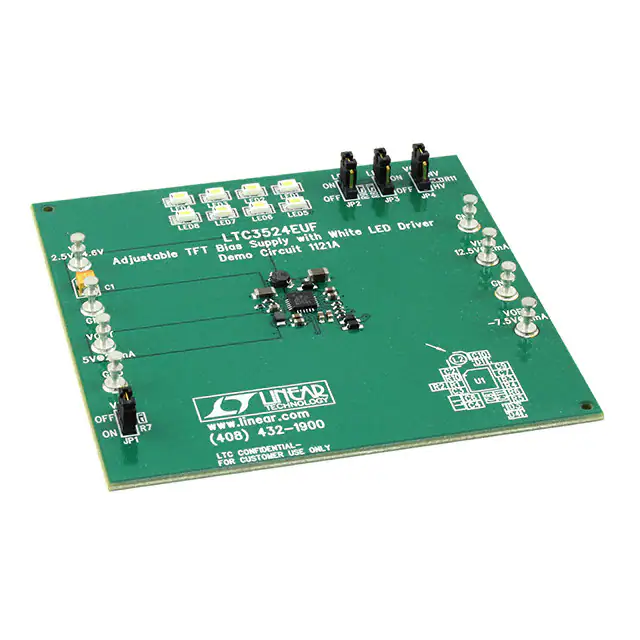

DC1121AEVAL BOARD FOR LTC3524 |
1 |
|
Datasheet |
- | Box | Active | Special Purpose DC/DC, LCD Supply | 3 Non-Isolated Outputs | - | 5V, 12.5V, -7.5V | 25mA, 2mA, 2mA | 2.5V ~ 4.6V | Boost | 1.5MHz | Board(s) | LTC3524 |
|

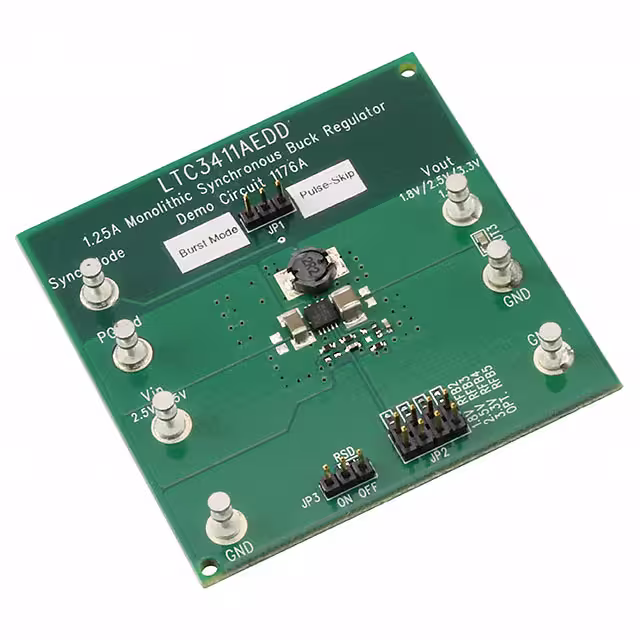

DC1176AEVAL BOARD FOR LTC3411A |
1 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V, 2.5V or 3.3V | 1.25A | 2.5V ~ 5.5V | Buck | 1MHz | Board(s) | LTC3411A |
|

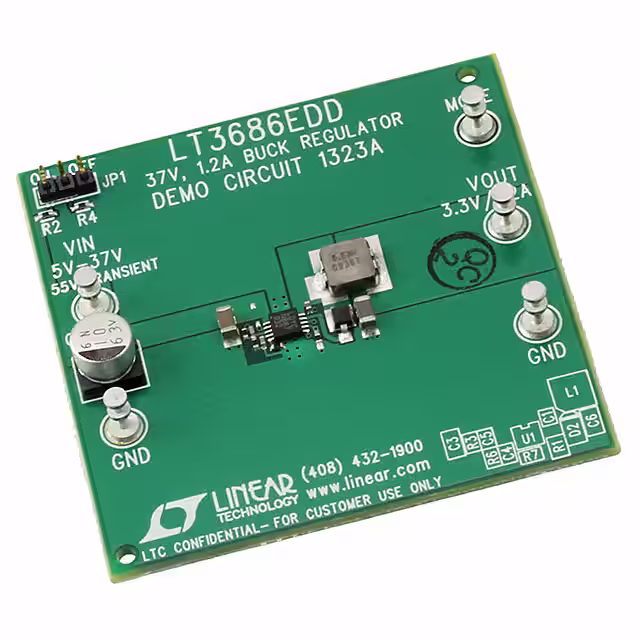

DC1323AEVAL BOARD FOR LT3686 |
1 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.2A | 5V ~ 37V | Buck | 1MHz | Board(s) | LT3686 |
|
DC1541A-BEVAL BOARD FOR LT36941 |
1 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | 1.8V, 2.5V, 3.3V | 1.7A, 450mA, 450mA | 4.5V ~ 36V | Buck | 800kHz | Board(s) | LT3694-1 |
|

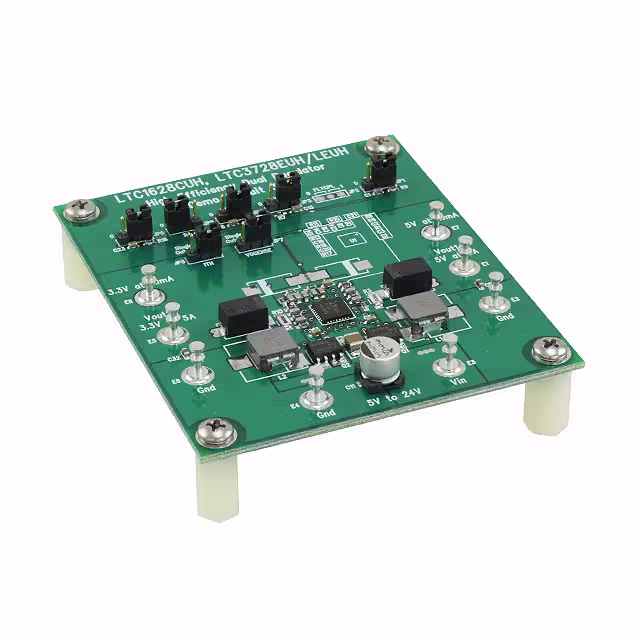

DC392A-BEVAL BOARD FOR LTC3728 |
1 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 5A, 4A | 5V ~ 24V | Buck | - | Board(s) | LTC3728 |
|

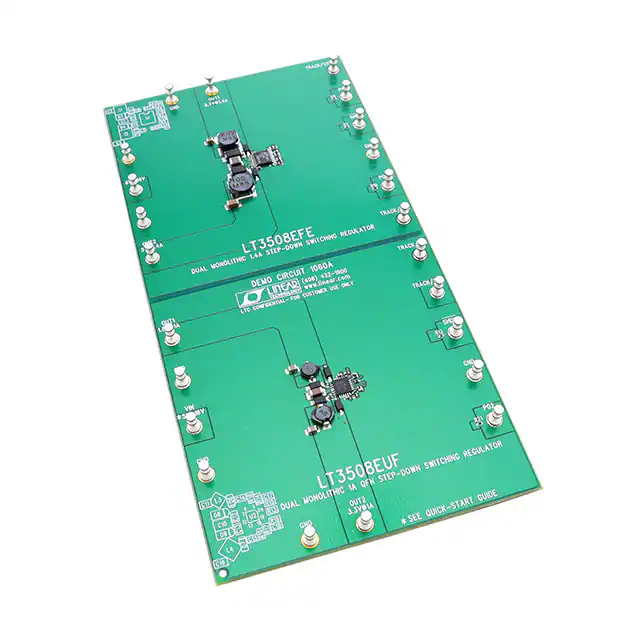

DC1060AEVAL BOARD LT3508EFE LT3508EUF |
1 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 4 Non-Isolated Outputs | - | 1.8V, 3.3V, 5V | 1.4A, 1A | 5V ~ 16V, 6V ~ 36V | Buck | 700kHz, 1.6MHz | Board(s) | LT3508EFE, LT3508EUF |
