Boxes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Container Type | Size / Dimension | Height | Area (L x W) | Design | Material | Color | Thickness | Features | Ratings | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATX-10509JUNCTION BOX ALUM 6.3"L X 6.3"W |
1 |
|
Datasheet |
ATX | Bulk | Active | Junction Box | 6.299" L x 6.299" W (160.00mm x 160.00mm) | 3.583" (91.00mm) | 39.7in² (256cm²) | Cover Included | Metal, Aluminum | Gray | 0.165" (4.20mm) | PCB Supports, Sealing Gasket | IP66 | - |
|

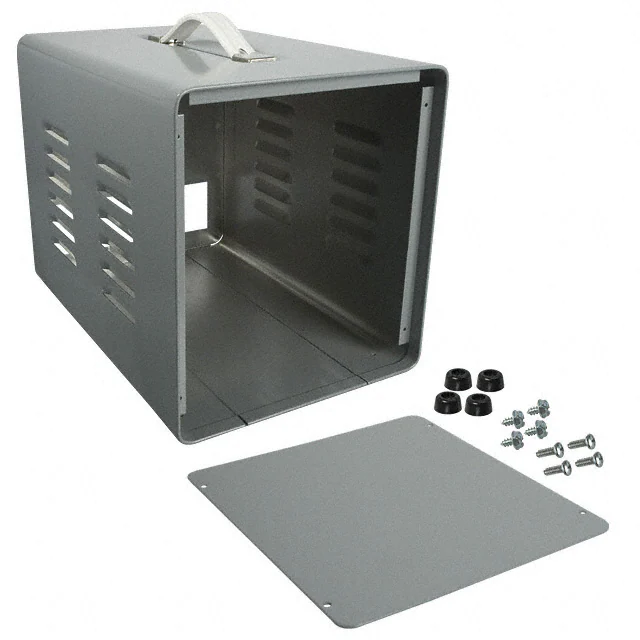

WA-1543CABINET ALUM GRAY 18"L X 11.13"W |
1 |
|
Datasheet |
PortaCab | Bulk | Active | Cabinet | 18.000" L x 11.125" W (457.20mm x 282.58mm) | 11.000" (279.40mm) | 200in² (1290cm²) | End Panel(s) | Metal, Aluminum | Gray | 0.050" (1.27mm) | Handles, Vented Panels | - | - |
|
H161407HC-6PENCLOSURE PC GRY 16.7"L X 14.7"W |
1 |
|
Datasheet |
Premium | Box | Active | Enclosure | 16.700" L x 14.700" W (424.18mm x 373.38mm) | 8.380" (212.85mm) | 245in² (1584cm²) | Cover Included | Plastic, Polycarbonate (PC) | Gray | - | - | IP66, IP68, NEMA 4X, NEMA 6P | UL94 5VA, UL94 V-0 |
|
700-434BOX PLASTIC GRAY |
1 |
|
Datasheet |
- | Box | Active | Box | - | 7.100" (180.34mm) | - | Cover Included, Hand Held | Plastic, Polycarbonate | Gray | - | - | IP67 | - |
|
E4PBXBOX STEEL GRAY 10"L X 4.02"W |
1 |
|
Datasheet |
- | Bulk | Active | Box | 10.000" L x 4.016" W (254.00mm x 102.00mm) | 4.764" (121.00mm) | 41.2in² (266cm²) | Cover Included | Metal, Steel | Gray | 14 Gauge | Mounting Flange, Pushbutton Holes - 4 | IP65, NEMA 12, 13, UL-508A | - |
|

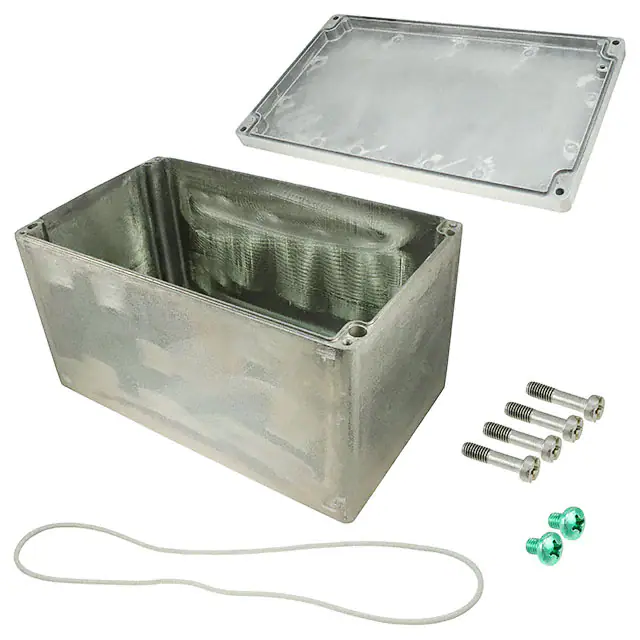

012340238BOX ALUM 15.75"L X 9.06"W |
0 |
|
Datasheet |
01 | Bulk | Active | Box | 15.748" L x 9.055" W (400.00mm x 230.00mm) | 8.858" (225.00mm) | 143in² (923cm²) | Cover Included | Metal, Aluminum | Unpainted | 0.217" (5.50mm) | Watertight | IP66, NEMA 1,2,4,4X, UL-508 | - |
|
A1212SCJUNCTION BOX STEEL 12"L X 12"W |
1 |
|
Datasheet |
- | Bulk | Active | Junction Box | 12.008" L x 12.008" W (305.00mm x 305.00mm) | 5.984" (152.00mm) | 144in² (929cm²) | Cover Included | Metal, Steel | Gray | 14 Gauge | PCB Supports, Sealing Gasket, Wall Mount | IP65, NEMA 12, 13, UL-508A | - |
|
SE1630CASE PLAS BLK 57.31"L X 18.48"W |
1 |
|
Datasheet |
SE, Seahorse | Box | Active | Case | 57.310" L x 18.480" W (1455.67mm x 469.39mm) | 8.390" (213.11mm) | 1059in² (6833cm²) | Equipment Case, Handles, Hinged Lid, Wheels | Plastic, Polypropylene | Black | - | - | IP67, NEMA 4X, 12, 13 | - |
|
A1210NFJUNCTION BOX STL 12.01"L X 10"W |
1 |
|
Datasheet |
- | Bulk | Active | Junction Box | 12.008" L x 10.000" W (305.00mm x 254.00mm) | 5.000" (127.00mm) | 120in² (774cm²) | Cover Included | Metal, Steel | Gray | 14 Gauge | Sealing Gasket, Wall Mount | IP66, NEMA 4,12,13, UL-508A | - |
|
A1412CHQRJUNCTION BOX STEEL 14"L X 12"W |
1 |
|
Datasheet |
- | Bulk | Active | Junction Box | 14.016" L x 12.008" W (356.00mm x 305.00mm) | 5.984" (152.00mm) | 168in² (1084cm²) | Hinged Door, Lid | Metal, Steel | Gray | 14 Gauge | Sealing Gasket, Wall Mount | IP65, NEMA 12, 13, UL-508A | - |
|
A14128CHJUNCTION BOX STEEL 14"L X 12"W |
0 |
|
Datasheet |
- | Bulk | Active | Junction Box | 14.016" L x 12.008" W (356.00mm x 305.00mm) | 7.992" (203.00mm) | 168in² (1084cm²) | Hinged Door, Lid | Metal, Steel | Gray | 14 Gauge | Sealing Gasket | IP65, NEMA 12, 13, UL-50, 50E | - |
|
|
A12108CHFLJUNCTION BOX STEEL 12"L X 10"W |
0 |
|
Datasheet |
- | Bulk | Active | Junction Box | 12.008" L x 10.000" W (305.00mm x 254.00mm) | 7.992" (203.00mm) | 120in² (774cm²) | Hinged Door, Lid | Metal, Steel | Gray | 14 Gauge | Latches, Sealing Gasket, Wall Mount | IP66, NEMA 4,12, UL-508A | - |
|
A16N16ALPBOX STEEL GRAY 15.98"L X 15.98"W |
1 |
|
Datasheet |
- | Bulk | Active | Box | 15.984" L x 15.984" W (406.00mm x 406.00mm) | 6.614" (168.00mm) | 255in² (1645cm²) | Hinged Door, Lid | Metal, Steel | Gray | 14 Gauge | Mounting Flange, Wall Mount | IP30, NEMA 1, UL-50, 50E | - |
|
1420E9BOX STEEL GRAY 24"L X 20"W |
1 |
|
Datasheet |
1420 | Box | Active | Box | 24.000" L x 20.000" W (609.60mm x 508.00mm) | 9.000" (228.60mm) | 480in² (3097cm²) | Hinged Door, Lid | Metal, Steel | Gray | 14 Gauge | Interior Panels | IP20, NEMA 1, UL-508 | - |
|
|
SSTB151508ENCLOSURE STEEL 5.91"L X 5.91"W |
1 |
|
Datasheet |
SSTB | Box | Active | Enclosure | 5.906" L x 5.906" W (150.00mm x 150.00mm) | 3.150" (80.00mm) | 35in² (225cm²) | Cover Included | Metal, Steel | Light Gray | - | - | IP66, NEMA 4,12,13 | - |
|

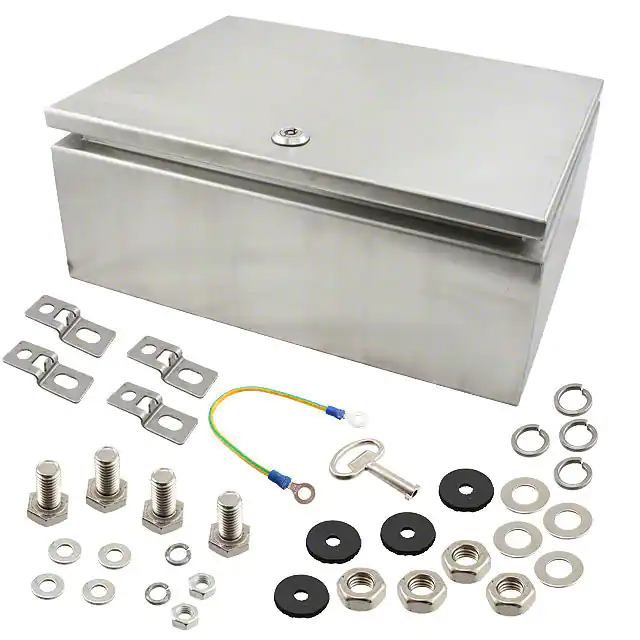

SNB-3735-SSBOX S STL NAT 15.75"L X 11.81"W |
0 |
|
Datasheet |
SNB | Bulk | Active | Box | 15.750" L x 11.810" W (400.05mm x 300.00mm) | 5.910" (150.11mm) | 186in² (1200cm²) | Hinged Door, Lid | Metal, Stainless Steel | Natural | 14 Gauge | Interior Panels, Mounting Flange | IP66, NEMA 1,2,4,4X, UL-508 | - |
|
1414N4ALM6BOX ALUM NATURAL 14"L X 12"W |
0 |
|
Datasheet |
1414 N4 AL | Box | Active | Box | 14.000" L x 12.000" W (355.60mm x 304.80mm) | 6.000" (152.40mm) | 168in² (1084cm²) | Cover Included | Metal, Aluminum | Natural | 0.080" (2.03mm) | Interior Panels | IP66, NEMA 4,12,13, UL-508 | - |
|
|
1002690000KLIPPON STB 1 SS |
0 |
|
Datasheet |
- | Bulk | Active | Enclosure | 4.961" L x 3.150" W (126.00mm x 80.00mm) | 4.961" (126.00mm) | 15.6in² (101cm²) | Cover Included | Metal, Stainless Steel | Silver | 0.059" (1.50mm) | - | IP66, NEMA 4,4X | - |
|

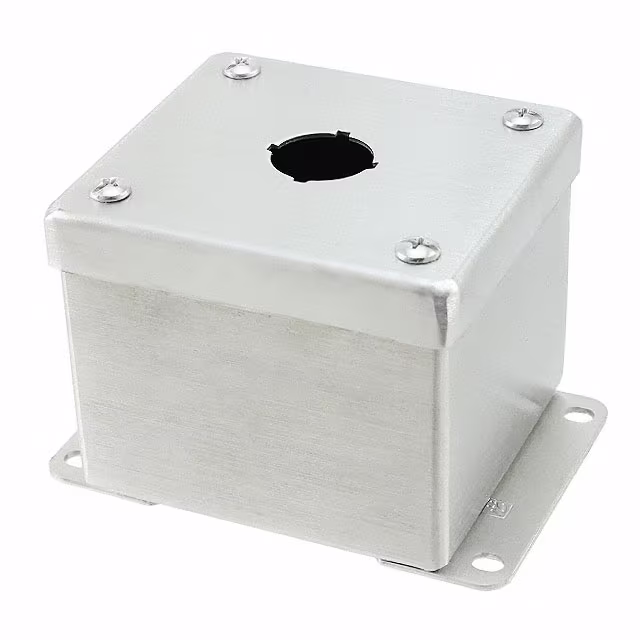

E1PBGSSBOX STEEL NAT 4.25"L X 3.50"W |
0 |
|
Datasheet |
- | Bulk | Active | Box | 4.252" L x 3.504" W (108.00mm x 89.00mm) | 2.756" (70.00mm) | 9.66in² (62.3cm²) | Cover Included | Metal, Steel | Natural | 14 Gauge | Mounting Flange, Pushbutton Holes - 1 | IP66, NEMA 4,4X,12,13, UL-508A | - |
|
NBF-32242BOX ABS/PC 23.62"L X 19.68"W |
0 |
|
Datasheet |
NBF | Bulk | Active | Box | 23.620" L x 19.680" W (599.95mm x 499.87mm) | 9.840" (249.94mm) | 465in² (3000cm²) | Hinged Door, Lid | Plastic, ABS/PC Blend | Gray, Clear Cover/Door | 0.185" (4.70mm) | PCB Supports, Non-Metallic Hinges | IP66, NEMA 1,2,4,4X,12,13 | UL94 5VA |
