Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCE028MD3DT8SBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Warble, Slow | 1.5 WPS | 75dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | |
|
|
SCE028LD3DT8SBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Dual Tone | 1.5 WPS | 85dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | |
|
|
SC628AFBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 6 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 50dB @ 7.5V, 61cm | 2 ~ 4mA | Top | -30°C ~ 65°C | - | - | NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | |
|

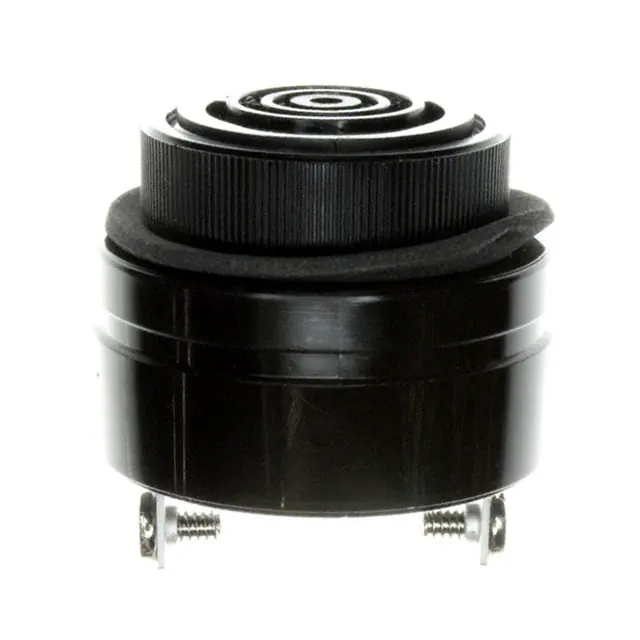

SC110DJBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2kHz | Piezo | Pulse, Slow | 0.5 ~ 2.5 PPS | 60dB @ 30V, 61cm | 6 ~ 20mA | Top | -30°C ~ 65°C | cUL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | |
|
|
SC628EPBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 58dB @ 6V, 61cm | 3 ~ 14mA | Top | -30°C ~ 65°C | - | - | NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | |
|
|
SC250FBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 60 ~ 250V | 2.9kHz | Piezo | Single Tone | - | 55dB @ 60V, 61cm | 1 ~ 4mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | |
|
|
SCL028MA3CTBBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SCL | Bulk | Active | Indicator, Internally Driven | AC | - | 16 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 75dB @ 16V, 61cm | 20mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) | |
|
|
SCE016SD2FP1BBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2kHz | Piezo | Pulse, Fast | 10 PPS | 65dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.692" Dia (42.98mm) | |
|
|
SCE028SD2FP1BBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2kHz | Piezo | Pulse, Fast | 10 PPS | 65dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) | |
|
|
SCE048LD2FP1BBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2kHz | Piezo | Pulse, Fast | 10 PPS | 85dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) | |
|
|
SCE048MD2FP1BBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2kHz | Piezo | Pulse, Fast | 10 PPS | 75dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) | |
|
|
SCE048SD2FP1BBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2kHz | Piezo | Pulse, Fast | 10 PPS | 65dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) | |
|
|
SCE028MD2FP1BBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2kHz | Piezo | Pulse, Fast | 10 PPS | 75dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.692" Dia (42.98mm) | |
|
|
SCE028LD2FP1BBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2kHz | Piezo | Pulse, Fast | 10 PPS | 85dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.692" Dia (42.98mm) | |
|
|
SC628JWBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Warble, Slow | 0.5 ~ 2.5 PPS | 68dB @ 6V, 61cm | 5 ~ 20mA | Top | -30°C ~ 65°C | - | - | NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | |
|
|
SCE016SD2MP1BBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2kHz | Piezo | Pulse, Medium | 5 PPS | 65dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.692" Dia (42.98mm) | |
|
|
SCE028SD2MP1BBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2kHz | Piezo | Pulse, Medium | 5 PPS | 65dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) | |
|
|
SCE048LD2MP1BBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2kHz | Piezo | Pulse, Medium | 5 PPS | 85dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) | |
|
|
SCE048MD2MP1BBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2kHz | Piezo | Pulse, Medium | 5 PPS | 75dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) | |
|
|
SCE028MD2MP1BBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2kHz | Piezo | Pulse, Medium | 5 PPS | 75dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.692" Dia (42.98mm) |
